Colour sorters · Industrial vision inspection
Vision inspection and sorting, built from the core device up.

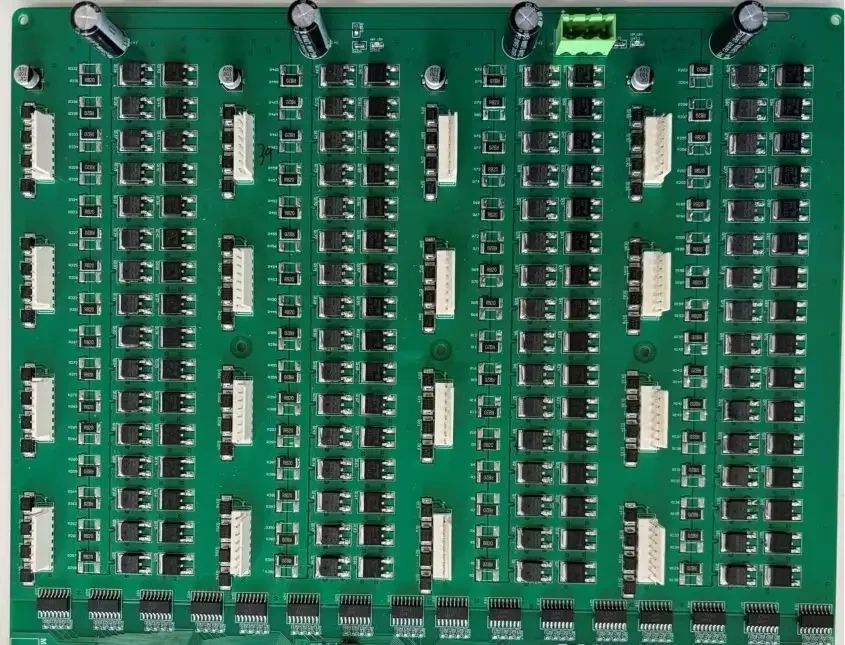

2048-pixel CMOS cameras at a 20 kHz line rate, 12T / 48T edge boxes with sub-millisecond inference, and ejection valve boards switching at 0.3 ms open and 0.2 ms close. Imaging, inference, actuation and the training loop are developed as one system.
2048px
CMOS resolution at a 14 µm pixel pitch
0.3/ 0.2 ms
Ejection valve open / close timing
<1ms
Image inference latency at the edge
8+ yr
Valve continuous-run design target
What we build
Five layers. One sorting loop.
Camera, edge inference, valve timing, panel PC and training platform are developed in-house and specified together, so a defect decision travels from the sensor to the air valve on one timing budget.
Capability matrix
Why a single supplier changes the result
Imaging, inference, actuation, control and training are tuned against each other rather than integrated after the fact. Select a layer to see the parameters it covers.
2048 px CMOS sensor, 14 µm pixel pitch, 20 kHz line rate
FPGA-embedded algorithms: colour, Mono, colour difference and SVM
Two Gigabit Ethernet ports with the ejection interface on board
NIR capability, custom HD lenses, deep learning once paired with the edge box
Industry applications
Where the loop is already running
Grain, tea, herbal material, ore and metal each put a different demand on imaging and ejection. Pick your material to see the configuration we recommend.
Selected cases
Configurations already running in the field
Each case pairs a material with a camera path, compute tier and valve configuration. Open one to see the timing and imaging decisions behind it.
About Deep Sortx
Ten years of sorting, five layers in-house
Based in Hefei, Deep Sortx works on colour sorter technology and industrial vision inspection. The team brings more than ten years of sorting industry experience and has deployed projects across grain, tea, herbal, ore and metal lines.
Alongside the electronics, the company holds mechanical design capability and supply chain resources for sheet metal production and component procurement, so a customer drawing can reach production.
About Deep SortxStart a project
Tell us what you need to sort
Send the material and the defect you want removed. We will come back with an imaging path, an edge compute tier and a valve configuration that fit the machine you are building.
